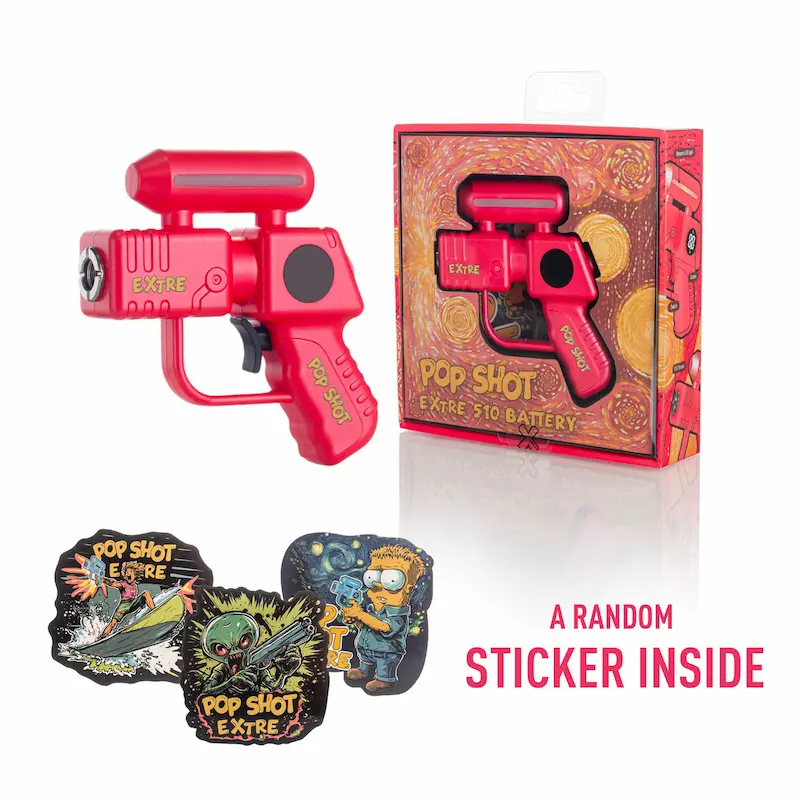

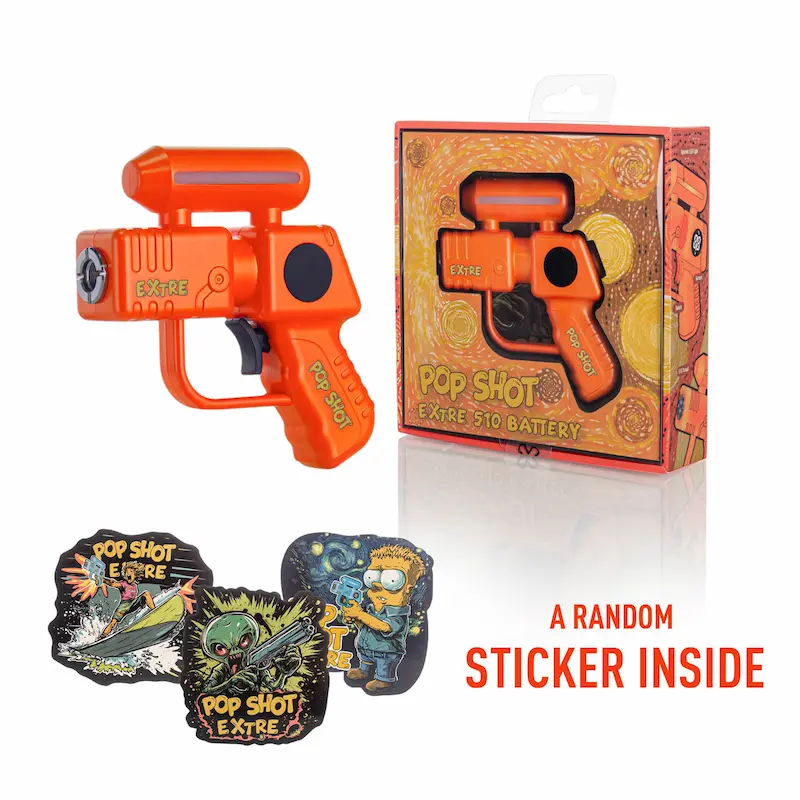

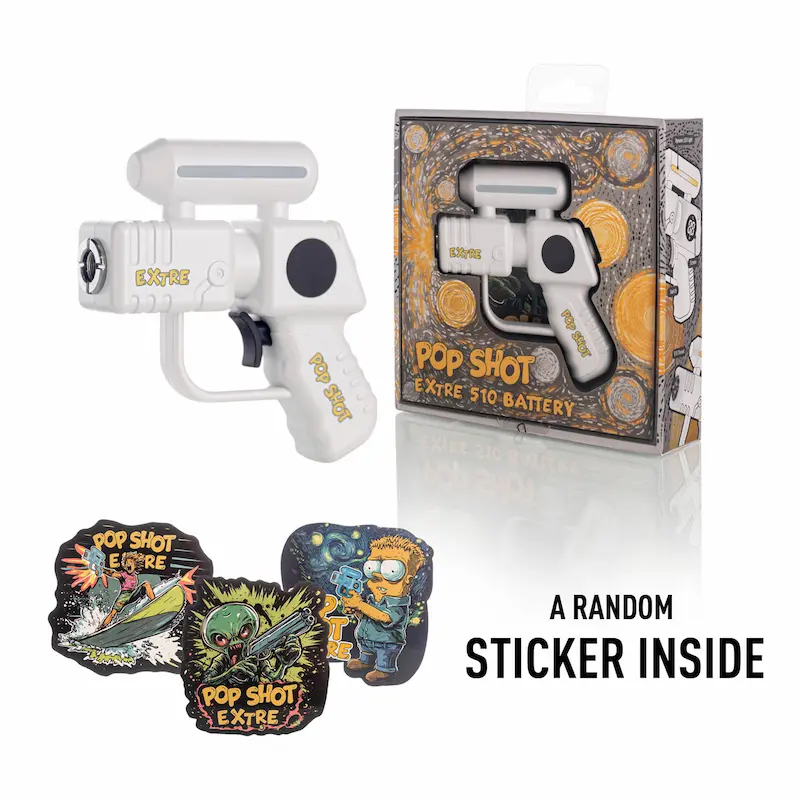

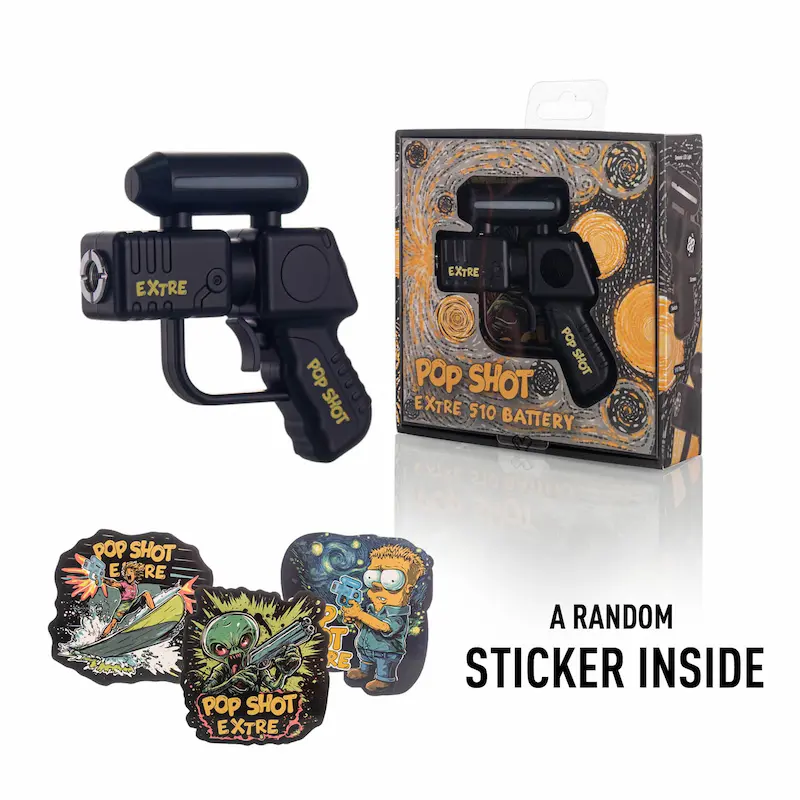

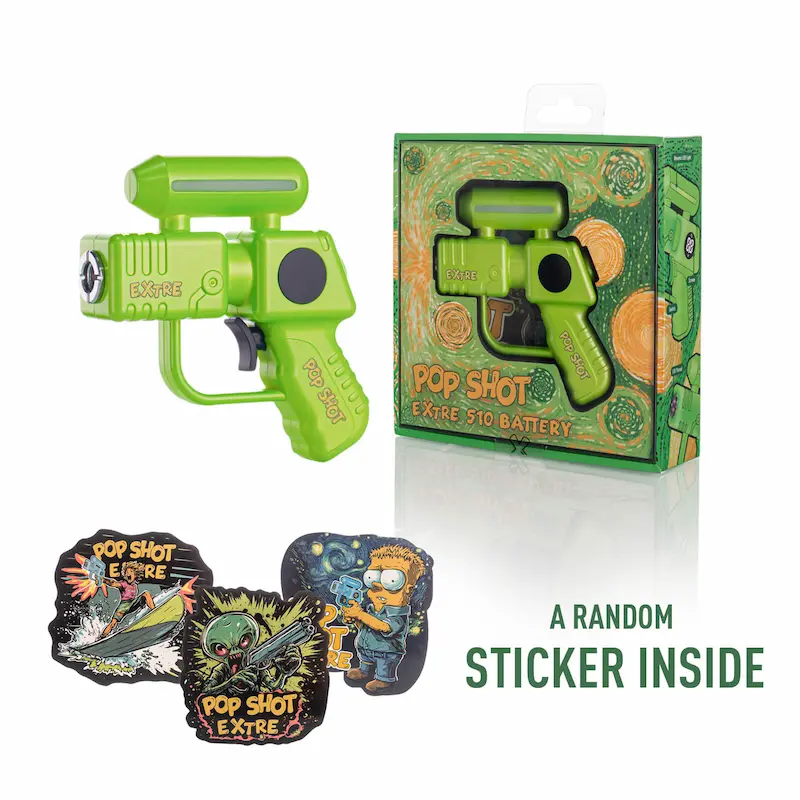

EXTRE Pop Shot Digital Screen 510 Thread Battery

The EXTRE Pop Shot is a compact, precision-controlled 510 thread battery built for vapers who demand real-time feedback and reliable daily performance. Equipped with a 500mAh A-grade battery cell, 5-step variable voltage (2.4V–4.0V), USB Type-C fast charging, and a smart digital screen that displays voltage, battery level, and cartridge status — it delivers full control in a pocket-friendly form factor. Available exclusively with manufacturer warranty at ExtreShop, the official EXTRE online store.

Key Features

• Universal 510 Thread Compatibility: Works with virtually all 510-thread oil cartridges — distillate, live resin, and rosin carts from any brand. Requires cartridge resistance ≥0.8Ω.
• Precision 5-Step Variable Voltage: Choose from 2.4V / 2.8V / 3.2V / 3.6V / 4.0V to dial in the perfect balance between flavor and vapor density. Lower voltage preserves delicate terpenes; higher voltage produces thicker clouds.
• Smart Digital Screen Display: No more guessing. The screen shows your exact voltage setting, real-time battery percentage, and cartridge connection status. Alerts you instantly if no atomizer is detected or battery is low.
• USB Type-C Fast Charging: Full charge in approximately 60–90 minutes using any standard USB-C cable — the same one you use for your phone. No proprietary cables needed.
• 12-Second Preheat Mode: Double-click to gently warm your cartridge before the first draw. Prevents clogging with thick oils, eliminates dry hits, and ensures smooth vapor from the very first puff — especially useful in cold weather.
• Advanced Safety Protection: Built-in short-circuit detection, over-voltage protection (OVP), no-atomizer alert, and low-battery warning. The battery will refuse to fire if it detects unsafe conditions.
• Button-Activated & 15-Second Auto-Cutoff: Press and hold to vape — no accidental firing in your pocket. Automatically stops after 15 seconds to protect both the coil and battery.
• Skin-Friendly Tactile Coating: Soft-touch, non-slip grip with a premium matte finish that feels comfortable during extended sessions.

Technical Specifications

• Battery Capacity: 500mAh (A-grade lithium cell)
• Voltage Range: 2.4V / 2.8V / 3.2V / 3.6V / 4.0V (5 levels)
• Charging: USB Type-C, 60–90 minutes full charge
• Dimensions: 78mm × 18mm
• Weight: 42g
• Body Material: Aluminum alloy body with stainless steel 510 contact
• Coating: Skin-friendly tactile matte finish
• Thread: Universal 510 thread (compatible with ≥0.8Ω cartridges)
• Safety: Short-circuit / OVP / No-atomizer / Low-battery protection
• Auto-Cutoff: 15 seconds
• Preheat: 12 seconds (double-click activation)
• Certifications: CE, RoHS, FCC compliant
• Colors: Black, Blue, Green, Orange, Pink, Purple, Red, White

How to Use the EXTRE Pop Shot — Complete Instructions

1. First-Time Setup
   Charge the battery fully before first use (60–90 minutes via USB-C). The digital screen will show 100% when ready.
2. Attach Your Cartridge
   Screw a compatible 510-thread cartridge (≥0.8Ω) onto the battery. Finger-tight is enough — do not overtighten, as this may damage the contact pin.
3. Power On
   Click the button 5 times rapidly. The digital screen will light up and display the current voltage and battery level.
4. Select Your Voltage
   Click the button 3 times to cycle through the 5 voltage levels. Choose based on your cartridge type:
   • 2.4V — Best for live resin and rosin cartridges. Maximum flavor preservation with smooth, cool vapor.
   • 2.8V — Recommended starting point for most users. Balanced flavor and vapor production.
   • 3.2V — Works well with standard distillate cartridges. Moderate clouds with good flavor.
   • 3.6V — For thicker oils that need more heat. Noticeably denser vapor.
   • 4.0V — Maximum vapor production. Best for very thick oils. May reduce flavor nuance.
5. Preheat (Optional)
   Double-click the button to activate the 12-second preheat cycle. The screen will show a countdown. This is recommended for:
   • First use of a new cartridge
   • Thick oil cartridges (distillate, wax)
   • Cold weather sessions
6. Vape
   Press and hold the button while inhaling slowly. Release the button just before you stop inhaling. The battery will automatically cut off after 15 seconds to prevent overheating.
7. Power Off
   Click the button 5 times rapidly to turn off. This also acts as a safety lock — the battery will not fire when powered off.

Screen Display Guide

• Battery Icon — Shows remaining charge as a percentage. Charge when below 10%.
• Voltage Number — Displays your current voltage setting (2.4V–4.0V).
• “NO ATOMIZER” Alert — No cartridge detected. Check that your cartridge is properly screwed in and the contact is clean.
• Low Battery Warning — Time to recharge via USB-C.

Troubleshooting

• Battery blinks when pressed: Usually means low battery or no cartridge detected. Try charging fully, or remove and re-attach the cartridge. Clean the 510 thread contact with a dry cotton swab.
• No vapor production: Ensure the cartridge is not empty and is properly connected. Try the preheat function first. If the screen shows “NO ATOMIZER,” the cartridge may have poor contact — gently adjust it.
• Burnt or harsh taste: Your voltage is too high for the oil type. Lower the setting. Start at 2.4V and increase one step at a time until you find the sweet spot.
• Battery won’t charge: Try a different USB-C cable. Ensure the charging port is free of debris. If the screen doesn’t respond at all, contact EXTRE support.
• Short battery life: Higher voltage settings drain the battery faster. Using 2.4V–2.8V will significantly extend battery life per charge. Avoid leaving the battery in extreme hot or cold temperatures.

Care & Maintenance

• Clean the 510 thread contact regularly with a dry cotton swab to maintain good conductivity
• Store upright when a cartridge is attached to prevent oil leaking into the contact
• Do not use while charging (passthrough vaping is not supported and may reduce battery lifespan)
• Keep away from water, extreme heat, and direct sunlight
• Store between 50°F–85°F (10°C–30°C) for optimal battery health

Pop Shot vs PlayDeck vs Mushroom — Which EXTRE Battery Is Right for You?

• Pop Shot ($27.99): 500mAh battery, 5-step voltage (2.4V–4.0V), digital screen, aluminum alloy body with tactile coating, compact pocket-friendly design. Best for daily users who want portability, safety, and straightforward precision control.
• PlayDeck ($34.99): 500mAh battery, 5-step voltage, digital screen, zinc-alloy body with finger-flick playdeck dial, premium pearl finish. Best for style-focused vapers who want a unique interactive fidget experience and head-turning design.
• Mushroom ($26.99): 550mAh battery, 4-step voltage (2.8V–4.2V), digital screen, silicone mushroom-shaped body, soft-touch grip. Best for fun-loving vapers who want a conversation-starting design at the best value price point.

Not sure which one to pick? Read our full EXTRE Digital 510 Battery Comparison Guide.

What’s In The Box

• 1 × EXTRE Pop Shot 500mAh VV Preheat Battery with Smart Digital Screen

Why Buy from ExtreShop?

• Official EXTRE Store: ExtreShop is the only authorized online store operated by the EXTRE brand. Every product ships directly from our warehouse with full quality inspection.
• Manufacturer Warranty: All batteries purchased from ExtreShop are covered by EXTRE’s official warranty. If your Pop Shot has a defect, we’ll replace it — no runaround.
• All 8 Colors In Stock: Unlike resellers who carry limited colors, ExtreShop offers the full Pop Shot color lineup: Black, Blue, Green, Orange, Pink, Purple, Red, and White.
• Free US Shipping: Free shipping via Registered Air Mail on all orders within the contiguous United States. First-time customers save 10% with code EXTRE2025 at checkout.
• Authentic & Safe: Every EXTRE battery meets CE, RoHS, and FCC safety standards. Counterfeits from unauthorized sellers may lack critical safety protections.

Advanced User Item. Use at your own risk. Always follow lithium battery safety guidelines. Must be 21+ to purchase.

Learn more: EXTRE POP SHOT Full Review
